Avid VENUE | XO16 Output Card

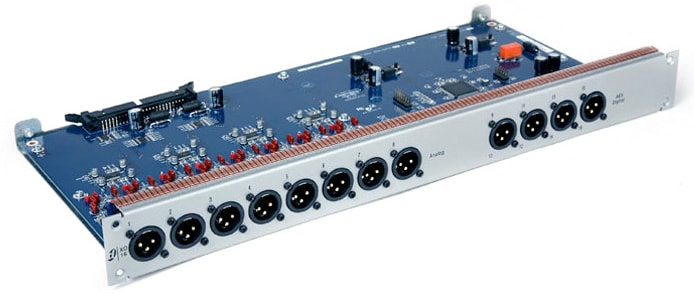

XO16outputcard_left

Expand your Avid VENUE system with additional analog and digital outputs. The XO16 Output Card is an option for the SC48 console, Mix Rack System, and Stage 48 remote I/O box, providing eight analog XLR line outputs and four stereo (8 channels) of digital XLR outputs. You can install up to two XO16 Cards for a total of 16 analog and 16 digital output channels.

Features

  • 8 analog outputs

    Send up to eight channels of analog line-level outputs through XLR3-male connectors

  • 8 digital outputs

    Get eight channels of AES3 digital output through 4 XLR3-male connectors, with each connector carrying two digital audio channels.

System requirements

SYSTEM
One of the following systems or components:
Avid VENUE | SC48
Avid Stage 48 I/O remote box
Avid VENUE | Mix Rack System

Specifications

ANALOG LINE OUTPUTS
Connector (x8)  XLR3-M
Impedance  50 Ohm
Maximum Output Level  +24 dBu
D/A Converter Latency  0.58 ms (Fs = 48 kHz)

DIGITAL OUTPUTS
Connector (x4)  XLR3-M
Format  AES3 (IEC-60958 Type I)
Word Length  24-bit
Impedance  110 Ohm
Level  ~3.6Vpp maximum (i.e., +/- 1.8V)
Sample Rate  48 kHz (no sample rate conversion)
Channel Status Info  Pro Audio 48k, No Emphasis
Dithering  None
Maximum Cable Length  100 meters (110 Ohm cable)

All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified.

0 dBu = 0.775Vrms
