Avid VENUE | ANO A-Net Output Card

ANOANetOutputCardleft

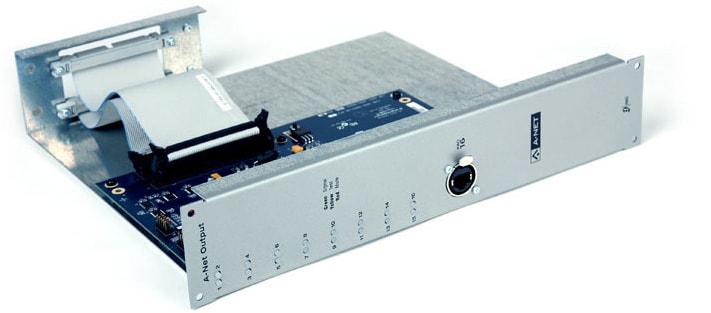

Enable artists, musicians, and other performers to control their own monitor mixes. The ANO A-Net Output Card is an option for the Stage Rack that enables you to integrate Aviom Pro16 Series personal mixers and devices with a Profile or D-Show System. Transmit up to 16 channels of audio from your system to an unlimited number of Aviom personal mixer stations for complete artist-controlled mixing.

You can install up to three ANO A-Net cards into a single Stage Rack to create multiple, discrete 16-channel networks. You can also use the card to complement an existing Personal Q monitoring system.

Features

  • Aviom Pro16-ready

    Transmit up to 16 channels of 24-bit, 48 kHz audio to an unlimited number of Aviom Pro16 Series devices using a single inexpensive Cat5e cable

  • Full A-Net control

    Control all A-Net parameters, including channel linking and Test mode, through tight integration with Avid VENUE software

  • Unique Auto Link

    Automatically link channel pairs across all personal mixers—no fussing with screwdrivers or tiny DIP switches

  • Unprecedented visual feedback

    With 16 signal presence LEDs, you get instant visual verification about the status of every channel, including if a channel is muted or in Test mode

  • Monitoring flexibility

    Create multiple, discrete 16-channel networks for your monitoring needs, such as setting up one for the band, another for broadcast, and a third for remote distribution

  • Reliable connectivity

    Avoid accidental disconnects with the locking Neutrik EtherCon jack, which accepts a conventional or ruggedized RJ45 connector

System requirements

 SYSTEM
 One of the following Stage Rack-based systems:
 Avid VENUE | Profile System
 Avid VENUE | D-Show System
