Avid VENUE | AO16 Analog Output Card

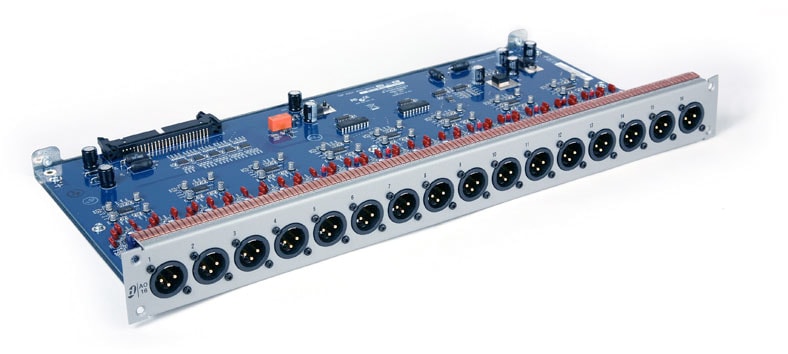

Expand your Avid VENUE system with additional analog line outputs. The AO16 (Analog Output 16) Card is an option for the SC48 console, Mix Rack System, and Stage 48 remote I/O box, providing 16 channels of analog line outputs. You can install one AO16 Card into an SC48 system or Stage 48 box. Or install two AO16 Cards in a Mix Rack System for a total of up to 32 analog line outputs.


  • 16 analog outputs

    Send up to 16 channels of analog line-level outputs through XLR3-male connectors

  • High-quality audio

    Achieve mixes with incredible warmth and clarity, thanks to 24-bit digital-to-analog converters

System requirements

 One of the following systems or components:
 Avid VENUE | SC48
 Stage 48 Remote I/O Box
 Avid VENUE | Mix Rack System


 Connector (x16) XLR3-M, balanced
 Impedance 50 Ohm
 Maximum Output Level +24 dBu
 Pad 20 dB
 D/A Converter Latency  0.58 ms (Fs = 48 kHz)

All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified.

 0 dBu = 0.775Vrms
