Avid VENUE | IOx Option Card

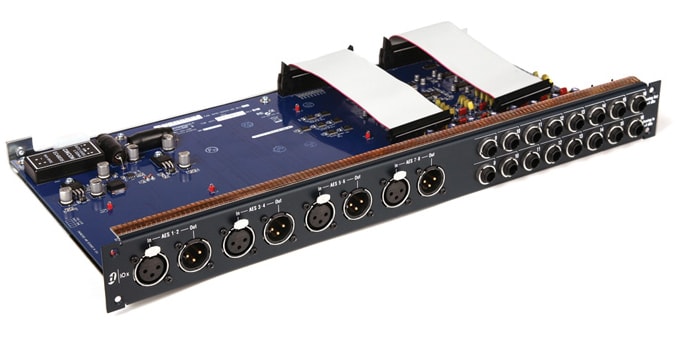

Connect your favorite outboard gear to your Profile, D-Show, or Mix Rack System. The IOx Option Card easily installs into an FOH Rack or Mix Rack, giving you more I/O flexibility at the console mixing position. The card features both analog and digital inputs and outputs, making it easy to integrate your prized compressor and EQ, effects processors, digital music player, and other hardware.
With FOH Rack, simply install the IOx card into any dedicated option slot to increase your standard I/O. With Mix Rack, the IOx card occupies the first available I/O slot, reducing the number of I/O slots by one. This means you can use a total of four I/O cards and still support up to 48 mic preamp inputs in addition to your IOx card.
Features
System requirements
| SYSTEM |
| One of the following systems: |
| Avid VENUE | Profile System |
| Avid VENUE | D-Show System |
| Avid VENUE | Mix Rack System |
Specifications
| Analog Inputs |
|
| Connector (x8) |
1/4" TRS, balanced |
| Maximum Input Level |
+24 dBu |
| Input Impedance |
10K Ohms |
| Analog Outputs |
|
| Connector (x8) |
1/4" TRS, balanced |
| Maximum Output Level |
+24 dBu |
| Output Impedance |
50 Ohms |
| Digital Inputs | |
| Connector (x4) |
XLR3-M, balanced—supports two digital audio channels per connector |
| Format |
AES/EBU |
| Word Length |
24-bit |
| Sample Rate |
48 kHz |
| Digital Outputs | |
| Connector (x4) |
XLR3-F, balanced—supports two digital audio channels per connector |
| Format |
AES/EBU |
| Word Length |
24-bit |
| Sample Rate | 48 kHz |
| Sample Rate Conversion |
Yes |
| Sample Rate |
48 kHz |
| Dithering |
None |
| Channel Status Info |
Pro, Audio, 48K (No Emphasis) |
Downloads
- IOx Card user guide (PDF)
