Avid VENUE | SRO Card

SROcardleft

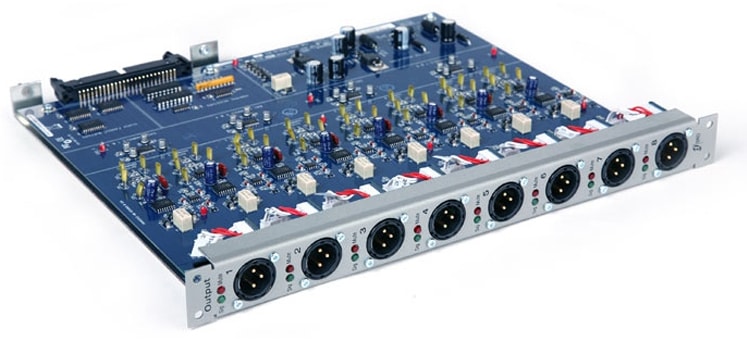

Expand your Profile or D-Show System with additional analog line outputs. The SRO (Stage Rack Output) Card is an option for the Stage Rack that adds eight channels of analog line outputs through XLR connectors.

You can install up to six SRO Cards into a single Stage Rack for a total of 48 analog line output channels. Or mix and match with other Stage Rack option cards to customize your output.

Features

  • 8 analog outputs

    Send up to eight channels of analog line-level outputs through XLR3-male connectors

  • High-quality audio

    Achieve mixes with incredible warmth and clarity, thanks to 24-bit digital-to-analog converters

System requirements

SYSTEM
One of the following Stage Rack-based systems:
Avid VENUE | Profile System
Avid VENUE | D-Show System

Specifications

ANALOG LINE OUTPUTS
Connector (x8)  XLR3-Male, balanced
Impedance  50 Ohm
Maximum Output Level  +24 dBu (0 dBu = 0.775Vrms)
D/A Converter Latency  0.58 ms (Fs = 48 kHz)

All measurements at Fs = 48 kHz, with 150 Ohm source impedance and 600 Ohm load impedance, unless otherwise specified.
